HD signal amplifier extender

Introduction:

This kind of HDMI Extender by Cat-5e/6 uses single piece CAT-5e/6 cable to extend the HDTV display up to 30 meters for 1080P.it not only breaks the limitation of the HDMI cable transmission length,but also CAT-5e/6 has more flexibility and convenience in cable construction

Features:

1 one pair as a full fun ctional module,no need of setting

2 Cat-5e/6 cable can sub stitute HDMI cable to achieve long distance transmission

3 Follow the standard of IEEE-568B

4 Transmission distance can be up to 30 meters for 1080P using CAT-6 Cable

5 Compact Size

6 Signaling rater up to 2.5Gbps in support of 1080P Display

7HDCP Compliant

8 No Need for extra power supply

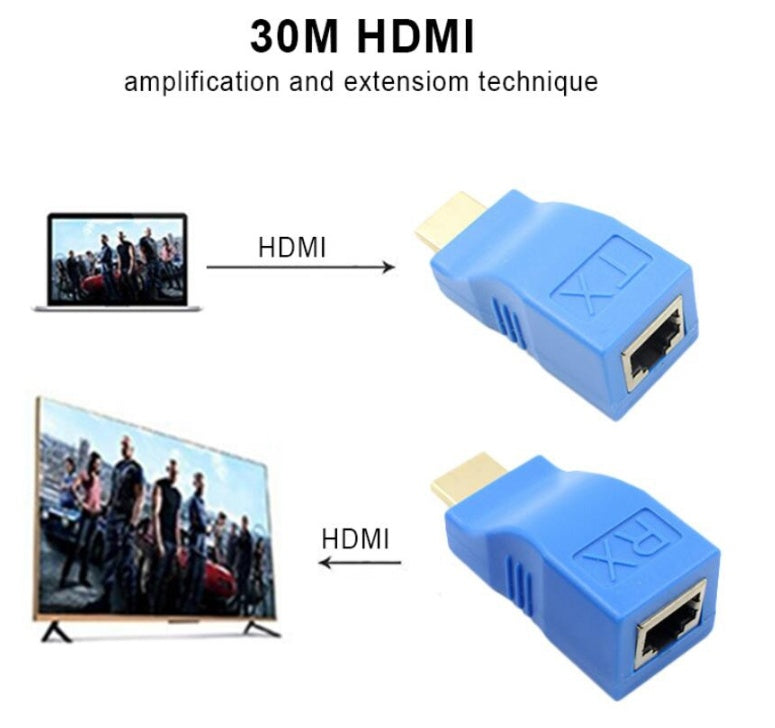

Operation:

1. Plug the fixed HDMI cable of the sender into the HDMI input source, such as: HD-DVD, for PS3, STB etc.

2. Connect the TX  HDMI adapter Single CAT-5e/6 cables, then the other end to the RX HDMI adapter to both the output of the transmiter and input of the receiver.

3. Plug the fixed HDMI cable of the receiver into the HDMI display, such as: HD-LCD, HD-DLP etc.

Package Included:

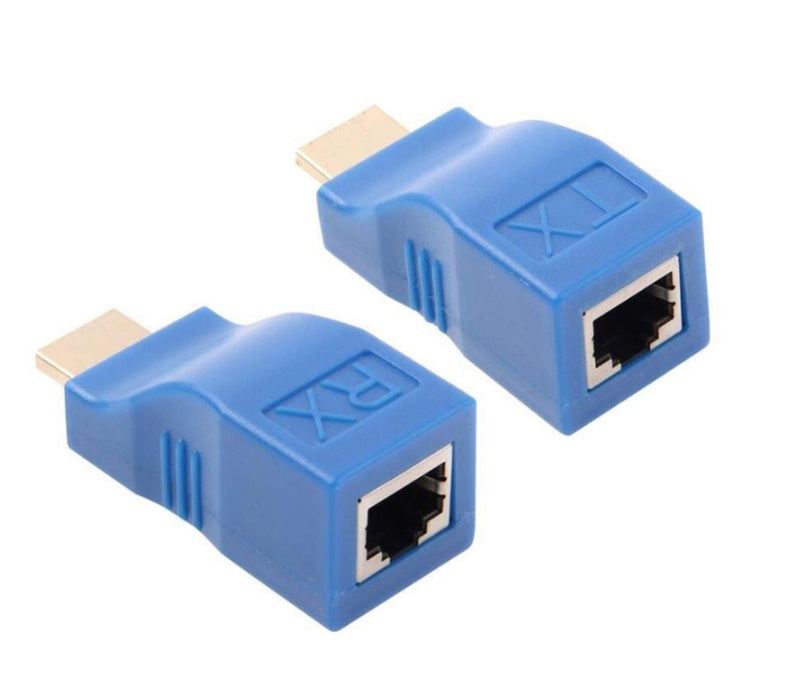

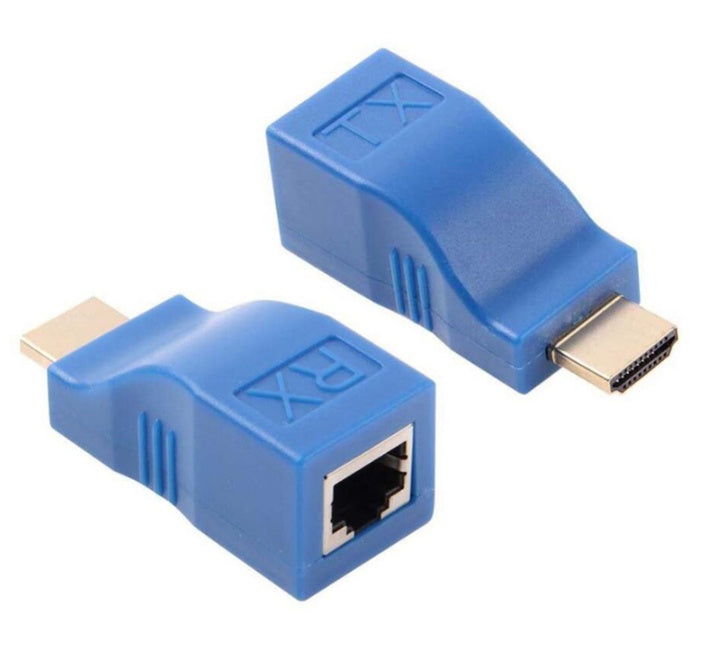

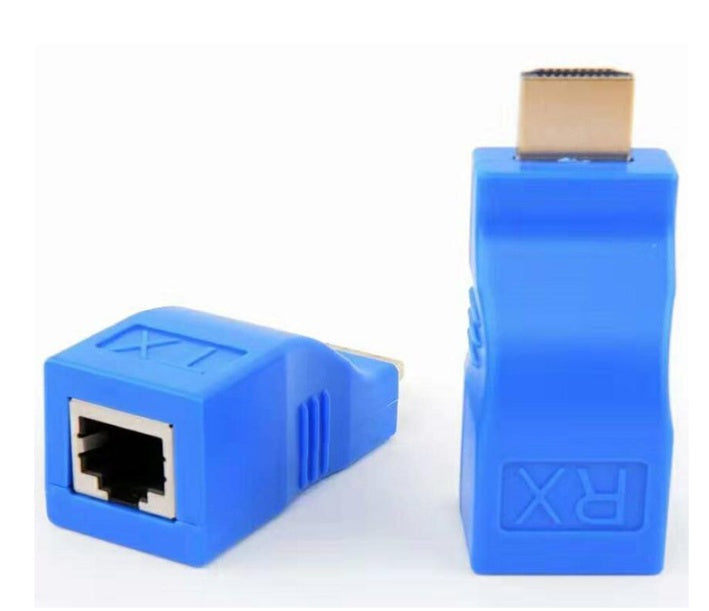

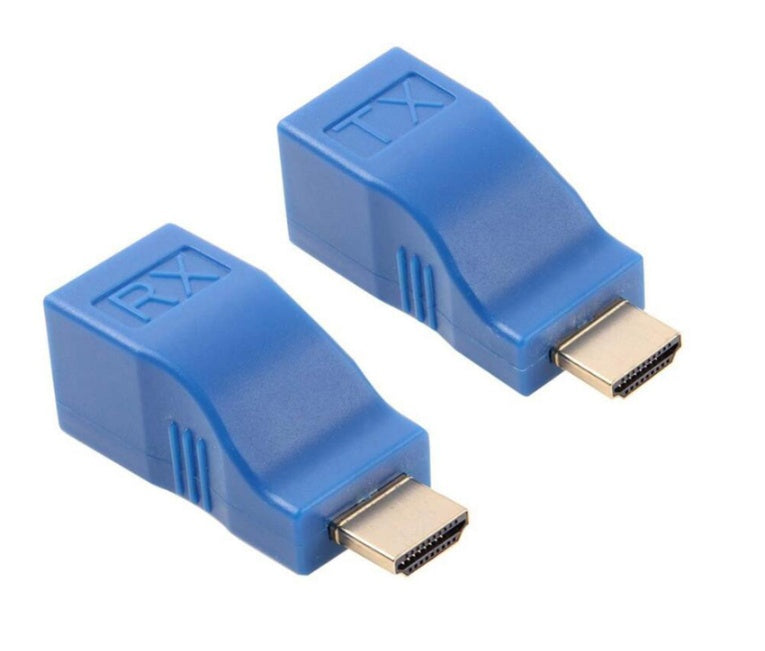

1 Pair x HDMI Extender(TX+RX)
